[Nuvoton] M058 - UART Interrupt

[설명]

- UART0 IRQHandler에 의해 1초에 수백번씩 수행됨

- UART_TEST_HANDLE() 함수가 계속 수행되지만 if(u32IntSts & UART_ISR_RDA_INT_Msk) 에 의해

  Data가 들어오는지 확인 한 후 수행함



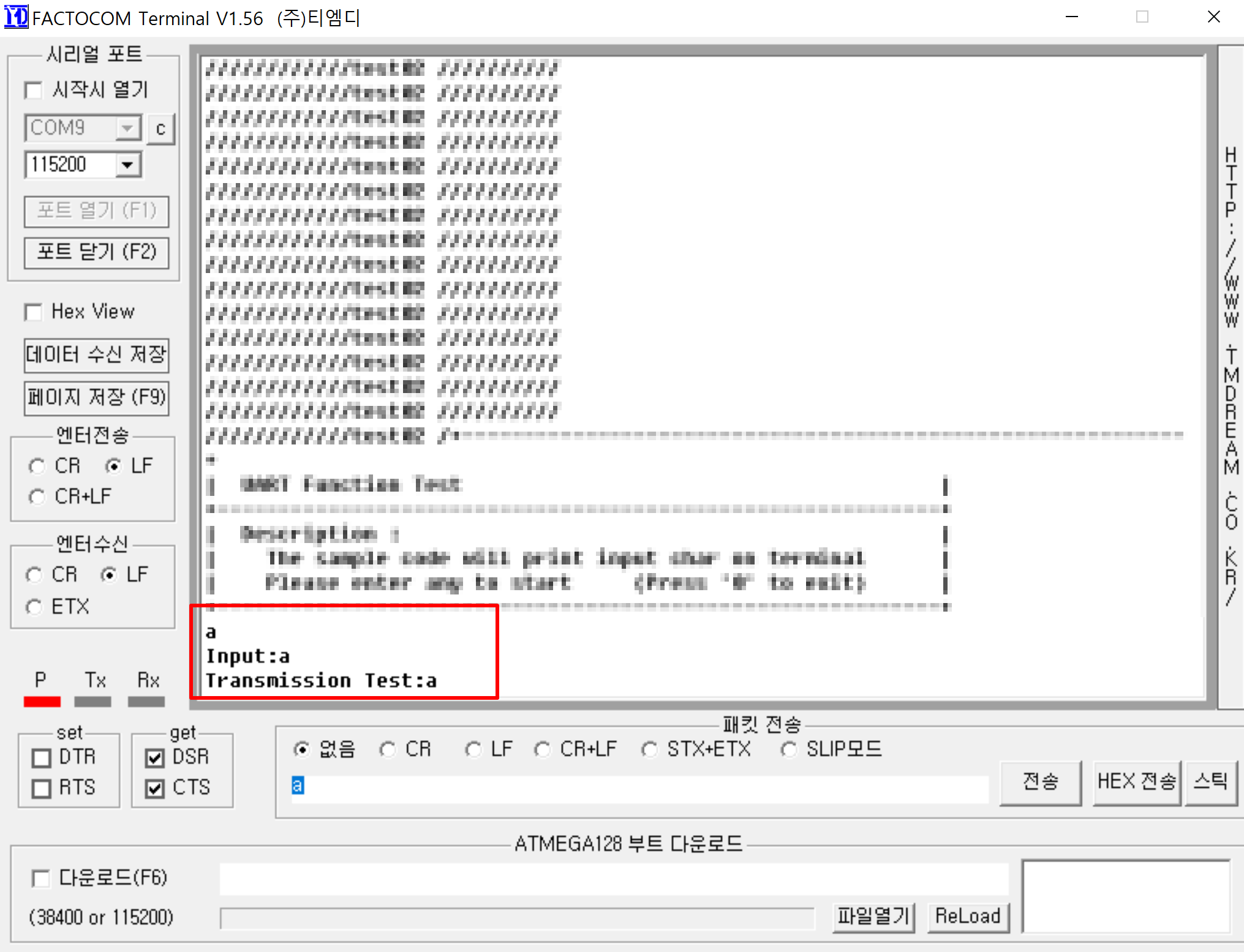

[실행화면]

[기본코드]

#include <stdio.h>
#include "M051Series.h"


#define PLL_CLOCK           50000000

#define RXBUFSIZE 1024

/*---------------------------------------------------------------------------------------------------------*/
/* Global variables                                                                                        */
/*---------------------------------------------------------------------------------------------------------*/
uint8_t g_u8RecData[RXBUFSIZE]  = {0};

volatile uint32_t g_u32comRbytes = 0;
volatile uint32_t g_u32comRhead  = 0;
volatile uint32_t g_u32comRtail  = 0;

/*---------------------------------------------------------------------------------------------------------*/
/* Define functions prototype                                                                              */
/*---------------------------------------------------------------------------------------------------------*/
int32_t main(void);
void UART_TEST_HANDLE(void);

void SYS_Init(void)
{
    /*---------------------------------------------------------------------------------------------------------*/
    /* Init System Clock                                                                                       */
    /*---------------------------------------------------------------------------------------------------------*/

    /* Enable Internal RC 22.1184MHz clock */
    CLK_EnableXtalRC(CLK_PWRCON_OSC22M_EN_Msk);

    /* Waiting for Internal RC clock ready */
    CLK_WaitClockReady(CLK_CLKSTATUS_OSC22M_STB_Msk);

    /* Switch HCLK clock source to Internal RC and HCLK source divide 1 */
    CLK_SetHCLK(CLK_CLKSEL0_HCLK_S_HIRC, CLK_CLKDIV_HCLK(1));

    /* Set core clock as PLL_CLOCK from PLL */
    CLK_SetCoreClock(PLL_CLOCK);

    /* Enable UART module clock */
    CLK_EnableModuleClock(UART0_MODULE);

    /* Select UART module clock source */
    CLK_SetModuleClock(UART0_MODULE, CLK_CLKSEL1_UART_S_PLL, CLK_CLKDIV_UART(1));

    /*---------------------------------------------------------------------------------------------------------*/
    /* Init I/O Multi-function                                                                                 */
    /*---------------------------------------------------------------------------------------------------------*/

    /* Set P3 multi-function pins for UART0 RXD and TXD */
    SYS->P3_MFP &= ~(SYS_MFP_P30_Msk | SYS_MFP_P31_Msk);
    SYS->P3_MFP |= (SYS_MFP_P30_RXD0 | SYS_MFP_P31_TXD0);

}

void UART0_Init()
{
    /*---------------------------------------------------------------------------------------------------------*/
    /* Init UART                                                                                               */
    /*---------------------------------------------------------------------------------------------------------*/
    /* Reset UART0 */
    SYS_ResetModule(UART0_RST);

    /* Configure UART0 and set UART0 Baudrate */
    UART_Open(UART0, 115200);

        //UART Interrupt Enable
        UART_ENABLE_INT(UART0, (UART_IER_RDA_IEN_Msk));
    NVIC_EnableIRQ(UART0_IRQn);

        /* Disable Interrupt */
    //UART_DISABLE_INT(UART0, (UART_IER_RDA_IEN_Msk | UART_IER_THRE_IEN_Msk | UART_IER_RTO_IEN_Msk));
    //NVIC_DisableIRQ(UART0_IRQn);

}

/*---------------------------------------------------------------------------------------------------------*/
/* MAIN function                                                                                           */
/*---------------------------------------------------------------------------------------------------------*/

int main(void)
{
    /* Unlock protected registers */
    SYS_UnlockReg();

    /* Init System, peripheral clock and multi-function I/O */
    SYS_Init();

    /* Lock protected registers */
    SYS_LockReg();

    /* Init UART0 for printf and testing */
    UART0_Init();

    while(1);
}

/*---------------------------------------------------------------------------------------------------------*/
/* ISR to handle UART Channel 0 interrupt event                                                            */
/*---------------------------------------------------------------------------------------------------------*/
void UART0_IRQHandler(void)
{
    UART_TEST_HANDLE();
}

/*---------------------------------------------------------------------------------------------------------*/
/* UART Callback function                                                                                  */
/*---------------------------------------------------------------------------------------------------------*/
void UART_TEST_HANDLE()
{
    uint8_t u8InChar = 0xFF;
    uint32_t u32IntSts = UART0->ISR;

    if(u32IntSts & UART_ISR_RDA_INT_Msk)
    {
        printf("\nInput:");

        /* Get all the input characters */
        while(UART_IS_RX_READY(UART0))
        {
            /* Get the character from UART Buffer */
            u8InChar = UART_READ(UART0);

            printf("%c ", u8InChar);

            /* Check if buffer full */
            if(g_u32comRbytes < RXBUFSIZE)
            {
                /* Enqueue the character */
                g_u8RecData[g_u32comRtail] = u8InChar;
                g_u32comRtail = (g_u32comRtail == (RXBUFSIZE - 1)) ? 0 : (g_u32comRtail + 1);
                g_u32comRbytes++;
            }
        }
        printf("\nTransmission Test:");
    }

    if(u32IntSts & UART_ISR_THRE_INT_Msk)
    {
        uint16_t tmp;
        tmp = g_u32comRtail;
        if(g_u32comRhead != tmp)
        {
            u8InChar = g_u8RecData[g_u32comRhead];
            while(UART_IS_TX_FULL(UART0));  /* Wait Tx is not full to transmit data */
            UART_WRITE(UART0, u8InChar);
            g_u32comRhead = (g_u32comRhead == (RXBUFSIZE - 1)) ? 0 : (g_u32comRhead + 1);
            g_u32comRbytes--;
        }
    }
}
